Medium‑Format Area Array Sensor-BGG061

Add to comparison

BRIGATES BGG061 is a 3/4 inch 6M global shutter CMOS image sensor with a maximum frame rate of 60fps. It has an active pixel array of 2896(H) x 2176(V).

Features:

<ul><li>High performance pixel design</li><li>High dynamic range, supporting analog gain HDR</li><li>Variable quantization precision: 8bit/10bit/12bit</li><li>Support 2x2 binning</li><li>Support skip mode-sub sampling</li><li>Support external trigger mode</li><li>Support external trigger encoded exposure</li><li>Support maximum ROI readout of 8(H)x8(V)</li><li>LED strobe</li><li>Built-in temperature sensor</li><li>Multi-chip cascading</li><li>Low-noise global shutter pixels</li></ul>

Applications:

<ul><li>Security surveillance</li><li>Industrial camera</li><li>High-speed image capture</li></ul>

Parameter

Parameter	Parameter Value	Unit
Exposure method	GS
Optical format	3/4"
Pixel size	3.45μm
Resolution	2896H×2176V
Frame rate	60fps
Data interface	LVDS / MIPI

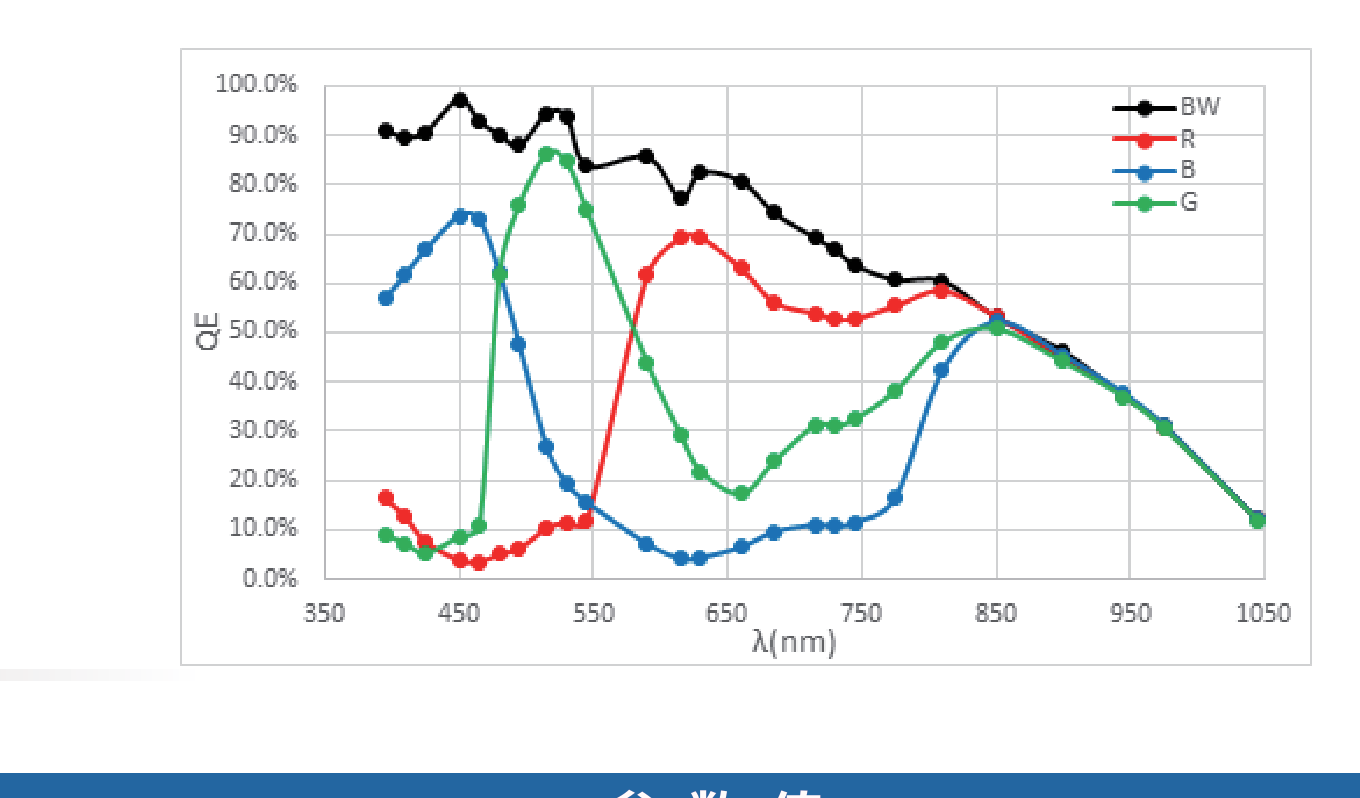

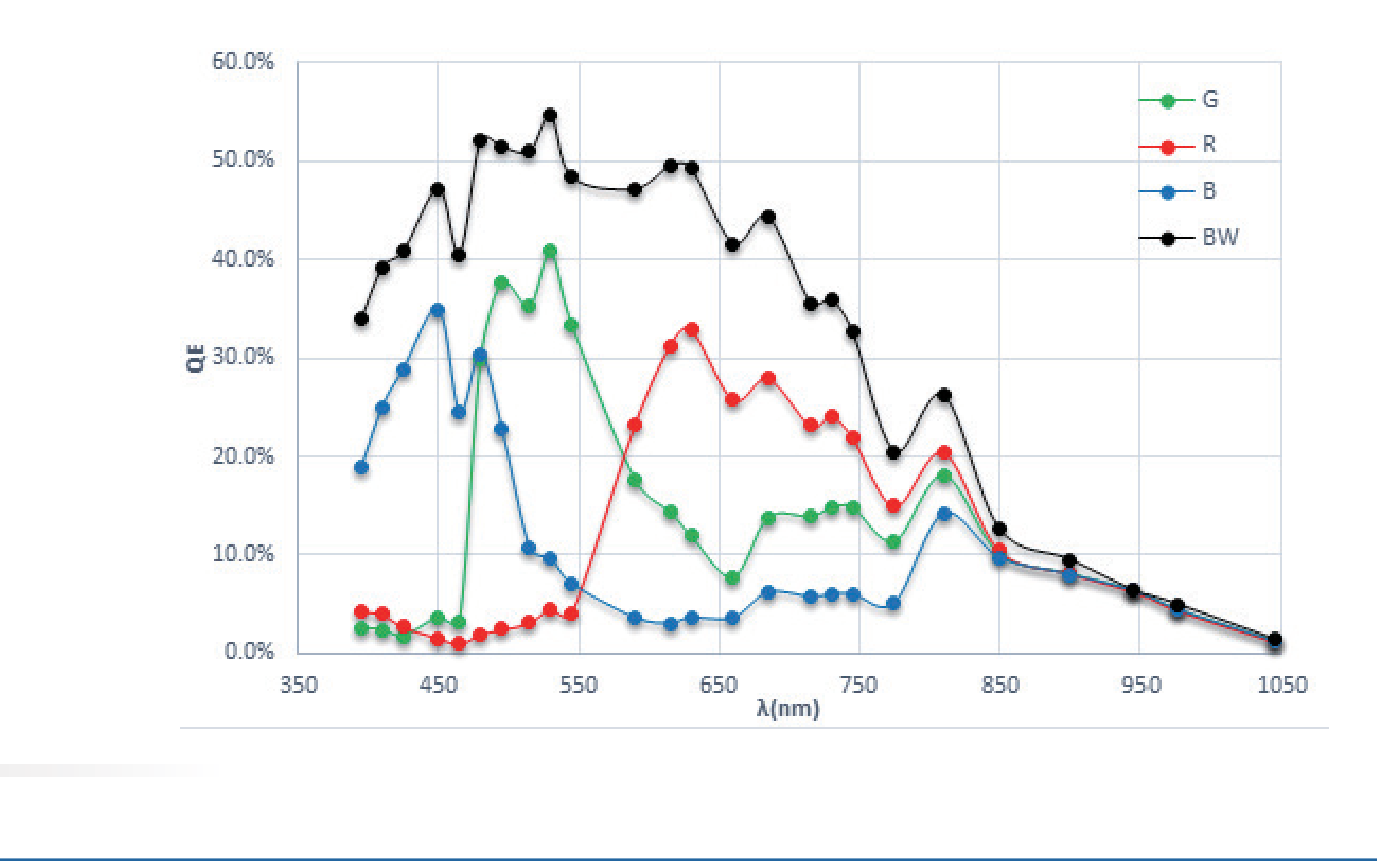

QE Curve

BGG061

BRIGATES BGG061 is a 3/4 inch 6M global shutter CMOS image sensor with a maximum frame rate of 60fps. It has an active pixel array of 2896(H) x 2176(V).

Key Features

High performance pixel design
High dynamic range, supporting analog gain HDR
Variable quantization precision: 8bit/10bit/12bit
Support 2x2 binning
Support skip mode-sub sampling
Support external trigger mode
Support external trigger encoded exposure
Support maximum ROI readout of 8(H)x8(V)
LED strobe
Built-in temperature sensor
Multi-chip cascading
Low-noise global shutter pixels

Key Specifications

Parameter	Value
Optical format	3/4 inch
Active pixel array (HxV)	2896 x 2176
Pixel size	3.45um x 3.45um
Color filter array	Bayer RGB/BW
Frame rate	60fps@full frame 12bit / 130fps@1080P 12bit
CRA	9 deg MAX
Sensitivity	45296e-/lux.s@BW / 19861e-/lux.s@G channel
PLS	6000
Dark current @60C	PD: 100e-/s/pixel / SN: 15e-/s/pixel
SNR(max)	39.1 dB
FWC	8 Ke-
Readout noise	1.4 e-
Shutter	Global shutter
Dynamic range	75 dB
Output interface	8/6/4/2 lane LVDS / 8/4/2 lane MIPI / 12bit/10bit/8bit data format
HDR mode	Analog gain HDR
Operating temperature	-30 ~ 85C (1)
Packaging	CLGA
Active pixel array area	9.991mm x 7.507mm
Control interface	IIC
Power supply	1.5V +/- 0.1V (Digital) / 1.7V ~ 3.3V (IO) / 3.3V +/- 0.1V (Analog)
Quantization accuracy	12bit / 10bit / 8bit
Dimensions	< 21mm>
ESD rating	2000V
Pixel feature	Low-noise global shutter pixels
Note	(1) The temperature range specified here is for junction temperature, not ambient temperature.
